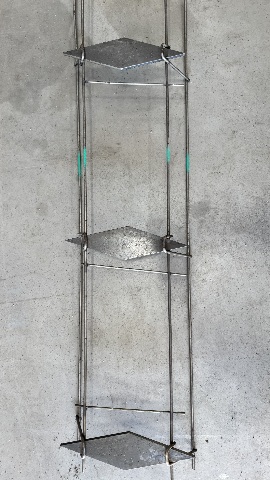

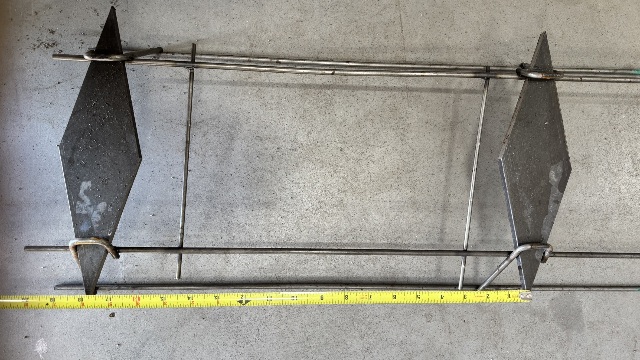

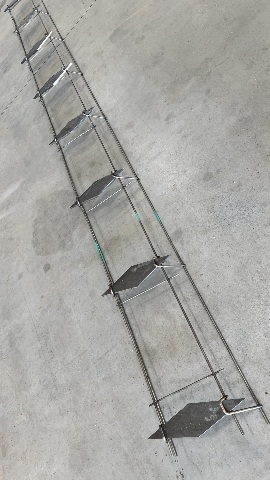

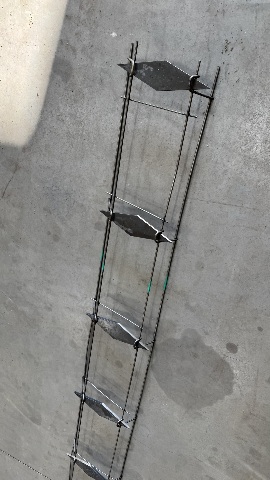

Plate Dowels for Saw-Cut Contraction Joints

The QuicDiamondTM Basket Assembly provides reliable joint stability and positive load transfer in concrete flatwork applications, and the continuity of the surface profile helps minimize joint spalling. Engineered to provide the optimal use of steel, the performance-based design is cost effective for interior and exterior concrete exposed to wheeled traffic and heavy loads.
• Provides stable dowel support and alignment with fully welded basket assemblies
• Doweling method in accordance with ACI 360 Design of Slab-on-Ground 0% load transfer efficiency 100% load transfer efficiency
• Sawing of steel according to industry guidelines ensures smooth plate edges and leads to free movement of dowel
• Design accommodates axial and lateral slab movements rapidly
• Solidly constructed framework to maintain position under rigorous jobsite conditions
• Factory applied debonding agent on all baskets reduces on-site labor
• All plates are manufactured from steel certified to meet ASTM A36

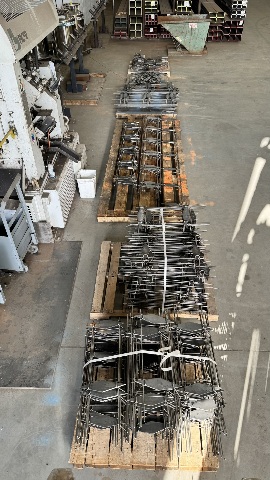

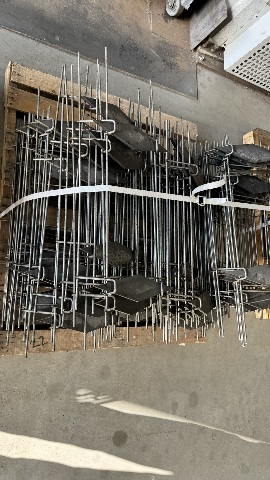

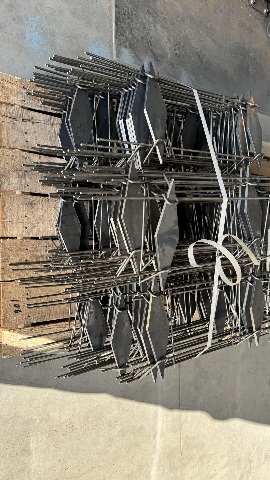

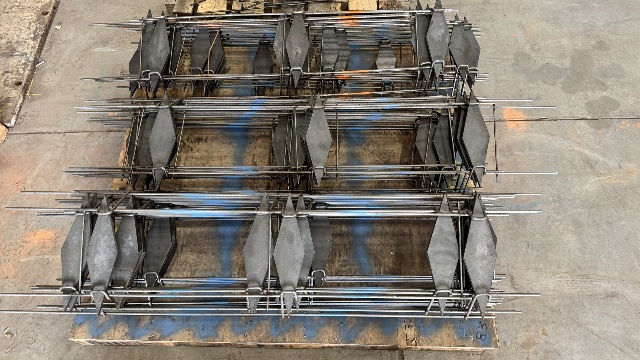

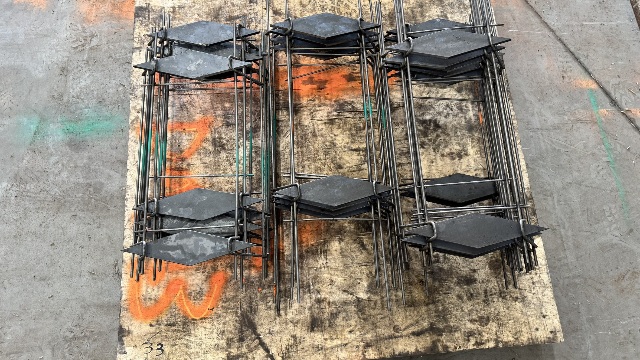

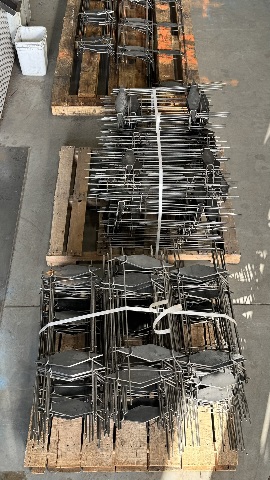

6 Skids as pictured, approx. 600+ Linear Feet
